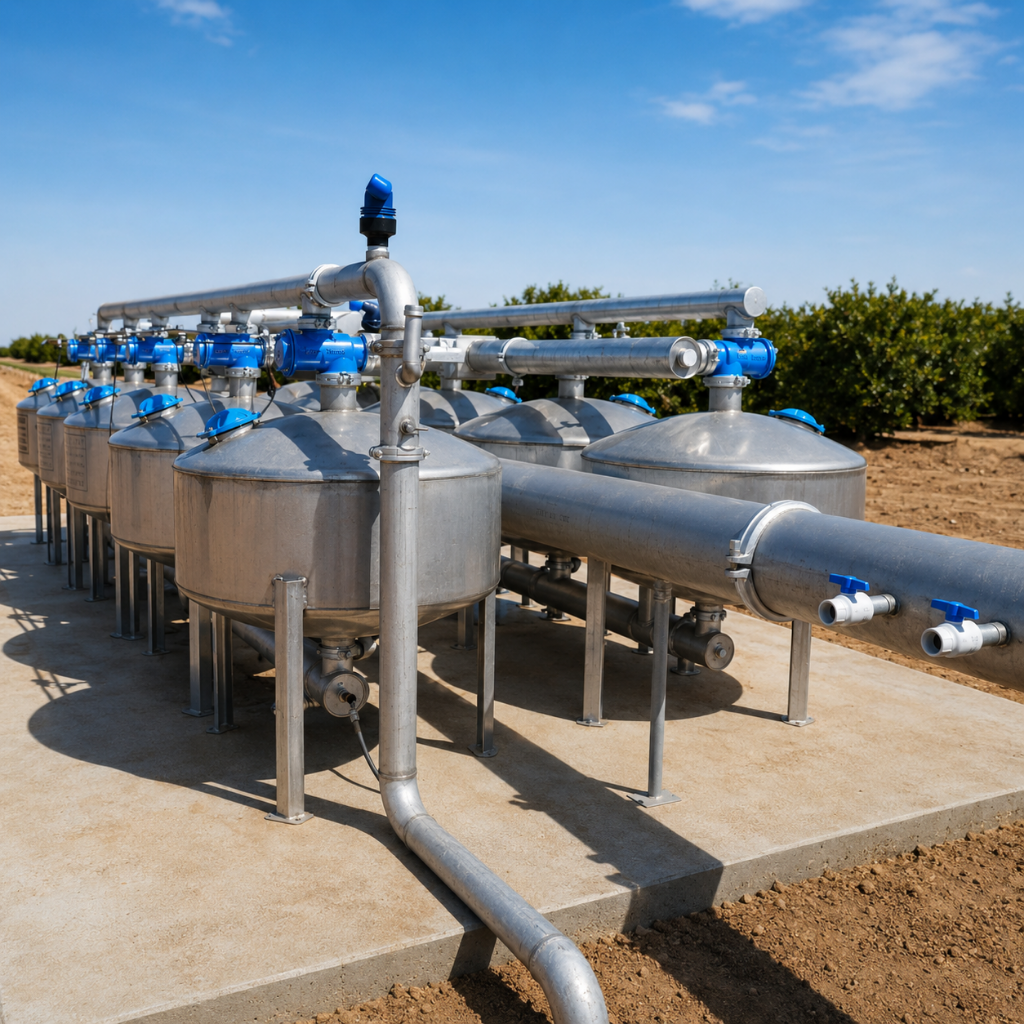

Perigo FlushLine Sand Media Filter System
FlushLine™ OverviewPFL-001 · Quote Configurator

Perigo FlushLine™

Sand Media Flushline System

A configurable flush manifold assembly designed for sand media filter stations. Manifold lengths are automatically determined by the number of tanks selected. Systems are available as fabricated parts only or as a complete installation package.

Final layout, dimensions, and part configuration will be reviewed and confirmed by Perigo before fabrication.

System Layout

Filter station pattern, tank count, pipe size, and material

Manifold lengths are determined automatically based on the number of tanks selected.

Drop Configuration

Flush drop location, type, and bypass

Select a filter pattern above to see drop location options.

Position 1 is the left end, Position 2 is the right end (viewed from the front of the system).

Double-90 drop descends close to the tanks, then turns 90° to exit off the pad to the ground connection.

Field Measurements

Provide dimensions to configure the drop and ground connection

Measurement Guide

A

Pad edge to ground connection — horizontal distance from the edge of the concrete pad to the centerline of the ground connection.

B

Tank center to pad edge — distance from the centerline of the tank the drop is coming from to the edge of the pad.

C

Tank top to ground connection — vertical distance from the tank top down to the centerline of the ground connection.

inches

Horizontal distance from the edge of the concrete pad to the centerline of the ground connection.

inches

Distance from the centerline of the tank the drop is coming from to the edge of the pad.

inches

Vertical distance from the top of the tank down to the centerline of the ground connection.

Ground Connection

Connection type, flange details, and existing pipe information

Vent / Port Configuration

Air vent ports and vent style preferences

Package Selection

Choose the level of components included in your quote

Attachments & Photos

Upload layout drawings, photos, or field sketches

Click to upload files

PDF, JPG, PNG, DWG, DXF accepted

Upload any existing filter station photos, pad layout drawings, or field sketches. Photos of the flushline area and ground connection are strongly recommended.

Your Information

Contact details and project location

Configuration Summary

Filter Pattern

—

Number of Tanks

—

Pipe Size

—

Material

—

Drop Location

—

Ground Connection

—

Package

—

This request will be reviewed by Perigo before final pricing and fabrication.

This is a quote request, not an order. A Perigo team member will review your configuration and follow up.
